Drive and control integrated motor for demanding industrial applications

Name: Drive and control integrated motor for demanding industrial applications
Brand: GDJD
Price: 1 USD

Brand Name : GDJD

Place of Origin : China

MOQ : 20PCS

Payment Terms : L/C

Supply Ability : 300PCS/Per Month

Delivery Time : 30 work days

Packaging Details : Carton Box

Supply Voltage : 80V

working temperature : -30℃~55℃

levels of protection : IP67

Contact Now

Drive and control integrated motor for demanding industrial applications

product model

input voltage

Peak output current / torque speed peak power (S2=2min)

Rated output current / Torque Speed Rated power (S2=15min)

VA-DR-E184P14-80

80V

279A/116N.m1800r/min22KW

184A/76N.m1800r/min14KW

ambient condition
	project	ask
	Storage temperature	-40℃~95℃
	working temperature	-30℃~55℃
	Hot and humid conditions	40±2℃,90%～95%
	levels of protection	IP67
	above sea level	Less than 1000 meters, more than 1000 meters decreased, and 1% decreased for each 100 meters increased
	salt atmosphere	The test period shall not be less than 96 hours, and the controller shall work normally after the test.
technical specifications
			Table 10: Technical indicators
	power input	rated voltage	DC 80V
		Minimum input voltage	DC 56V
		maximum input voltage	DC 96V
		starting voltage	DC 48V
	power output	rated current (A)	See 2.1.1, Table 3
	power output	output frequency	0.00~300.0Hz
	control characteristic	control method	Closed-loop vector, IF mode, and VF mode
		PWM frequency	2 KHz ~ 8 KHz (Setable)
		Logic-end input current	<10mA
		overtemperature protection	75℃ forewarning, 95℃ overtemperature protection
		Radiator insulation strength	500Vac
		levels of protection	IP67
		cooling-down method	natural cooling
		Upper-position computer detection function	Waveform state detection, I0 port state detection, parameters online upload and download function
		CANopen Communication	High-speed CAN communication, which can stably and timely monitor the working state of the drive
	defencive function	Overvoltage protection; overcurrent protection; overtemperature protection; short circuit protection; overload protection; contactor suction failure; contactor opening failure; current detection abnormal protection; KSI start abnormal protection; encoder failure; CAN communication failure.
	environment	Where to use	No condensation, ice, rain, snow, hail, etc., solar radiation less than 700 W/m2, pressure 70 ~ 106 kPa.
		above sea level	Less than 1000 meters, more than 1000 meters decreased, and 1% decreased for each 100 meters increased
		ambient temperature	-30℃ ~ + 55℃ (ambient temperature 40℃ ~55℃, please drop)
		humidity	5% ~ 95% RH, anhydrous bead condensation
		Storage temperature	-40℃~+90℃

The 80V all-in-one machine integrates the motor and controller, while meeting the high protection of IP67, making the space compact. At the same time, it saves the wiring of motors and drives on-site for customers, reducing costs.

China Drive and control integrated motor for demanding industrial applications factory

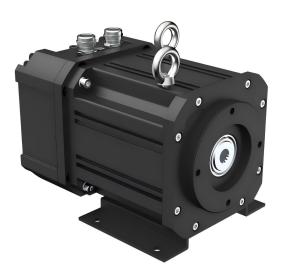

Drive and control integrated motor for demanding industrial applications Images
